Sử dụng hướng dẫn này để thay thế ăng-ten Wi-Fi 5GHz.

5/5 - (5 bình chọn)

Bước 1:

!!! Trước khi tháo iPhone, hãy xả pin xuống dưới 25%. Pin lithium-ion được sạc có thể bắt lửa và / hoặc nổ nếu vô tình bị thủng.

  • Tắt nguồn iPhone của bạn trước khi bắt đầu tháo gỡ.
  • Tháo hai ốc vít Pentalobe 3,6 mm P2 bên cạnh đầu nối Lightning.

Bước 2:

Hai bước tiếp theo thể hiện bằng cách sử dụng iSclack, một công cụ tuyệt vời để mở iPhone 6 Plus an toàn mà chúng tôi khuyên bạn nên dành cho bất kỳ ai thực hiện nhiều sửa chữa. Nếu bạn không sử dụng iSclack, hãy chuyển sang Bước 4.

  • Nếu máy đo độ sâu nhựa được gắn ở giữa iSclack, hãy tháo nó ngay bây giờ – nó không cần thiết cho các điện thoại lớn hơn như iPhone 6 Plus.
  • Đóng tay cầm trên iSclack, mở hàm tách hút.
  • Đặt đáy iPhone của bạn ở giữa các cốc hút.

Đặt cốc hút trên của iSclack vào màn hình, gần nút home.

  • Mở các chốt để đóng các hàm của iSclack. Đặt giữa các cốc hút và ấn chúng vào phần trên và dưới của iPhone.

Bước 3:

  • Giữ chặt iPhone của bạn và đóng tay cầm của iSclack để tách các cốc hút, kéo bảng mặt trước lên từ vỏ phía sau.

ISclack được thiết kế để mở một cách an toàn iPhone của bạn đủ để tách các mảnh, nhưng không đủ để làm hỏng bất kỳ cáp màn hình nào.

  • Bỏ hai cốc hút ra khỏi iPhone của bạn.
  • Bỏ qua ba bước tiếp theo và tiếp tục sang Bước 7.

Bước 4:

Nếu bạn không có iSclack, hãy sử dụng một cốc hút duy nhất để nâng bảng mặt trước:

  • Nhấn một cốc hút lên màn hình, ngay phía trên nút home.

Hãy chắc chắn rằng cốc được nhấn an toàn trên màn hình để có được một con dấu chặt chẽ.

Bước 5:

  • Trong khi giữ iPhone xuống bằng một tay, hãy kéo cốc hút lên một chút để tách cụm lắp phía trước khỏi vỏ phía sau.

!!! Hãy dành thời gian của bạn và áp dụng công ty, lực lượng không đổi. Việc lắp ráp màn hình là một phù hợp chặt chẽ hơn nhiều so với hầu hết các thiết bị.

  • Sử dụng dụng cụ mở nhựa, bắt đầu nhẹ nhàng nâng vỏ phía sau xuống, cách xa cụm màn hình, trong khi tiếp tục kéo lên bằng cốc hút.

Có một số kẹp gắn cụm bảng mặt trước vào vỏ phía sau, vì vậy bạn có thể cần phải sử dụng kết hợp giữa cốc hút và dụng cụ mở nhựa để giải phóng cụm lắp ráp phía trước.

Bước 6:

  • Kéo nub nhựa để nhả con dấu chân không trên cốc hút.
  • Tháo cốc hút ra khỏi cụm màn hình.

Bước 7:

  • Kéo đầu nút trang chủ của cụm mặt trước ra khỏi vỏ phía sau, sử dụng phần trên của điện thoại làm bản lề.
  • Mở màn hình hiển thị về góc 90º, và tựa nó vào vật gì đó để giữ nó trong khi bạn đang làm việc trên điện thoại.
  • Thêm băng cao su để giữ màn hình hiển thị an toàn tại chỗ trong khi bạn làm việc. Điều này ngăn cản sự căng thẳng quá mức trên cáp hiển thị.

Trong một nhúm, bạn có thể sử dụng một đồ uống đóng hộp chưa mở để giữ màn hình.

Bước 8:

Một số clip dọc theo cạnh trên của bảng điều khiển phía trước tạo thành bản lề một phần, cho phép lắp ráp bảng mặt trước mở ra như một cuốn sách.

Trong quá trình reassembly, sắp xếp các clip ngay dưới mép trên của vỏ phía sau. Sau đó, trượt bảng điều khiển phía trước lên trên cho đến khi cạnh trên cùng của nó ngang bằng với vỏ phía sau.

Bước 9:

Tháo các vít Phillips sau khỏi giá đỡ đầu nối pin:

  • Một vít 2,3 mm
  • Một vít 3.1 mm

Bước 10:

  • Tháo khung nối đầu nối pin bằng kim loại ra khỏi iPhone.

Bước 11:

  • Dùng móng tay sạch hoặc rìa của một công cụ mở để nhẹ nhàng cạy pin connector lên từ socket của nó trên bảng logic.

!!! Hãy cẩn thận để chỉ nâng lên trên đầu nối pin, và không phải là ổ cắm trên bảng logic. Nếu bạn nâng lên trên ổ cắm bảng logic, bạn có thể ngắt hoàn toàn trình kết nối.

Bước 12:

Tháo các vít Phillips sau bảo vệ khung cáp lắp ráp bảng mặt trước:

  • Ba vít 1,2 mm
  • Một vít 1,5 mm
  • Một vít 2,9 mm

!!! Không tìm cách lắp các vít dài hơn vào các lỗ vít được đánh dấu màu đỏ. Làm như vậy có thể dẫn đến hư hỏng không thể khắc phục được cho bảng logic.

Bước 13:

  • Tháo khung cáp lắp ráp bảng mặt trước khỏi bo mạch logic.

Bước 14:

!!! Trong bốn bước tiếp theo, hãy cẩn thận chỉ nâng lên trên đầu nối cáp chứ không phải trên ổ cắm của chúng trên bảng logic.

  • Trong khi vẫn hỗ trợ bảng mặt trước, hãy sử dụng móng tay hoặc cạnh của công cụ mở để ngắt kết nối camera phía trước và đầu nối loa tai nghe.

Bước 15:

  • Ngắt kết nối đầu nối cáp nút home.

Bước 16:

!!! Hãy chắc chắn rằng pin đã bị ngắt kết nối trước khi bạn ngắt kết nối hoặc kết nối lại cáp trong bước này.

  • Sử dụng công cụ mở nhựa để ngắt kết nối đầu nối cáp dữ liệu hiển thị.

Khi lắp ráp lại điện thoại của bạn, cáp dữ liệu hiển thị có thể bật ra khỏi đầu nối. Điều này có thể dẫn đến các đường trắng hoặc màn hình trống khi bật lại điện thoại của bạn. Nếu điều đó xảy ra, chỉ cần kết nối lại cáp và điện chu kỳ điện thoại của bạn. Cách tốt nhất để cấp nguồn cho điện thoại của bạn là ngắt kết nối và kết nối lại đầu nối pin.

Bước 17:

  • Cuối cùng, ngắt kết nối đầu nối cáp số hóa.

Khi kết nối lại cáp số hóa, không nhấn trung tâm của đầu nối. Nhấn một đầu của đầu nối, sau đó nhấn đầu kia. Việc nhấn ở giữa đầu nối có thể làm cong thành phần và gây ra sát thương số hóa.

Bước 18:

  • Tháo cụm mặt trước khỏi vỏ phía sau.

Bước 19:

Tháo các vít sau bảo vệ giá đỡ ăng-ten vào vỏ phía sau:

  • Một vít Phillips # 00 1,5 mm
  • Một vít Phillips # 00 2,8 mm

Bước 20:

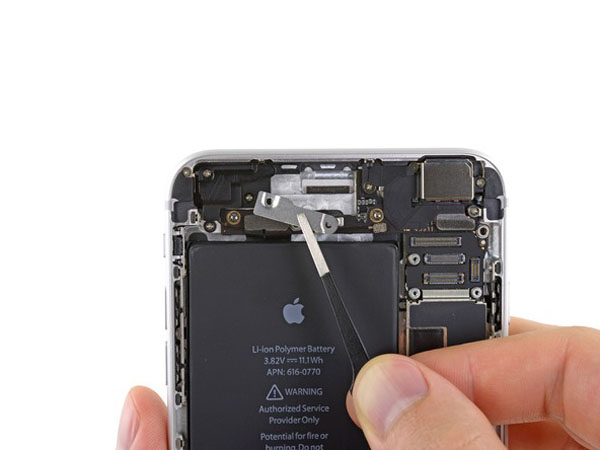

  • Nắm lấy khung ăng-ten Wi-Fi 5GHz bằng một cặp nhíp và nhấc nó ra khỏi iPhone.

Bước 21:

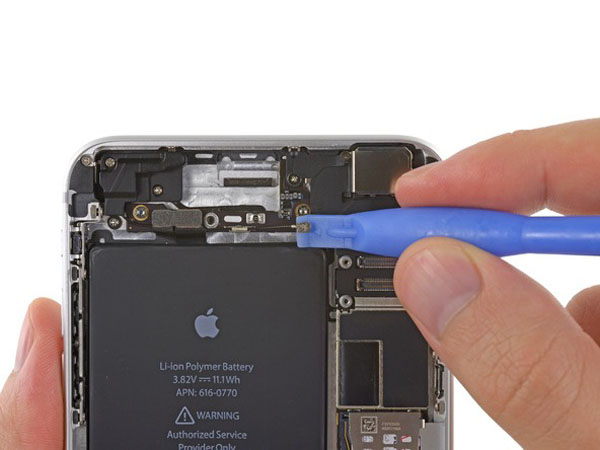

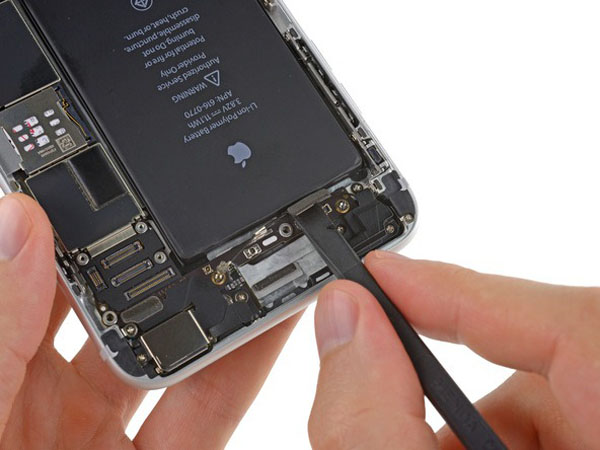

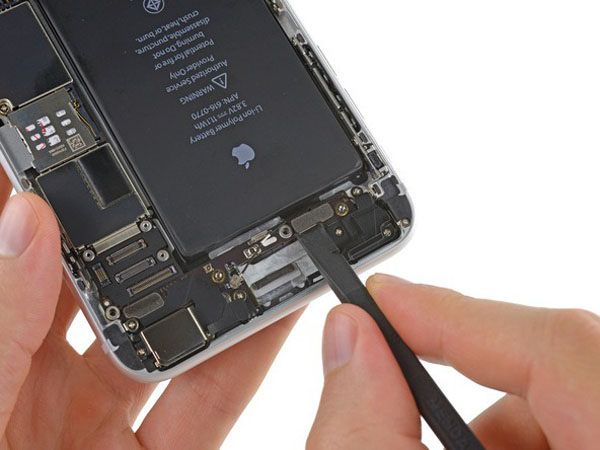

  • Cẩn thận nâng đầu nối ăng-ten Wi-Fi 5GHz lên bảng logic bằng công cụ mở nhựa.

Bước 22:

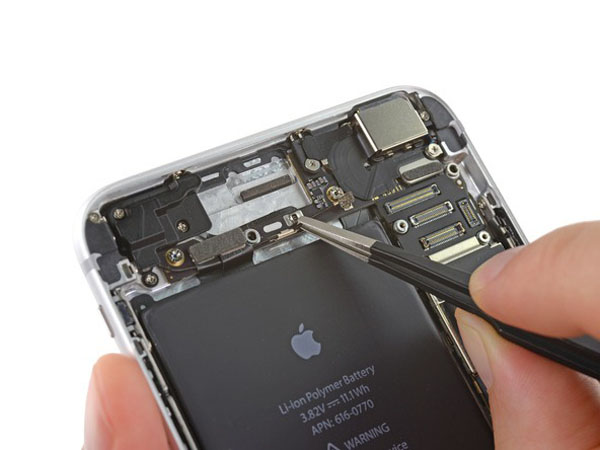

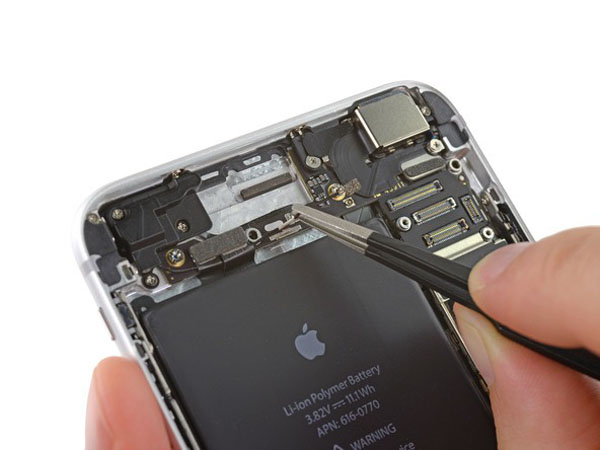

  • Nắm bắt đầu nối ăng-ten Wi-Fi 5GHz bằng một cặp nhíp và nhẹ nhàng nhấc nó ra khỏi kẹp giữ trên bảng logic.

Bước 23:

Hai đầu nối có thể được ghép nối bằng một thẻ kết dính đơn. Nếu đây là trường hợp, sau đó họ có thể tách ra như một cặp.

  • Ngắt kết nối cáp nút nguồn và đầu nối cáp điều khiển âm thanh từ các ổ cắm tương ứng trên bo mạch logic.

Bước 24:

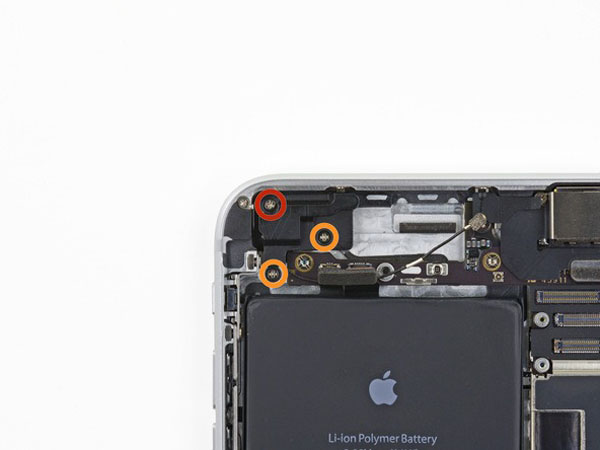

Tháo các vít sau bảo vệ anten Wi-Fi 5GHz cho vỏ sau:

  • Một vít Phillips # 00 2,8 mm
  • Hai vít Phillips # 00 1.6 mm

Bước 25:

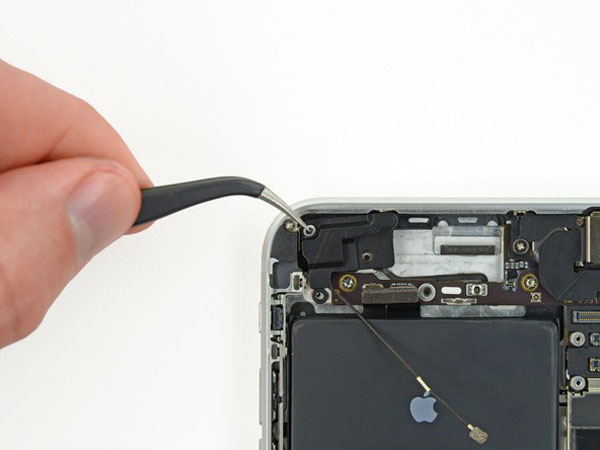

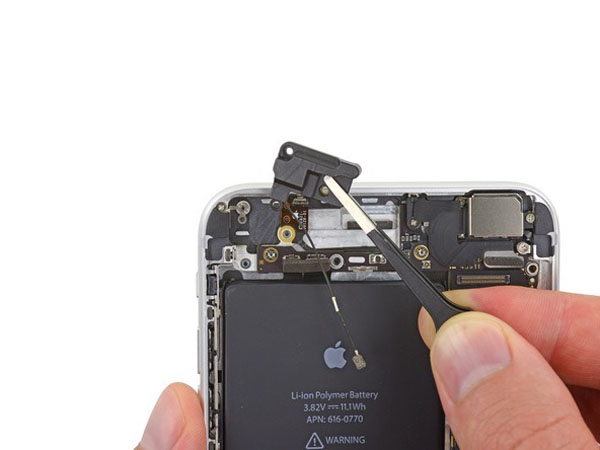

  • Sử dụng một cặp nhíp để nắm bắt và tháo ăng-ten Wi-Fi 5GHz ra khỏi iPhone.

Trong quá trình lắp ráp lại, đảm bảo đặt máy giặt nhỏ ở góc trên cùng bên trái của ăng-ten Wi-Fi 5GHz.
